Product Introduction

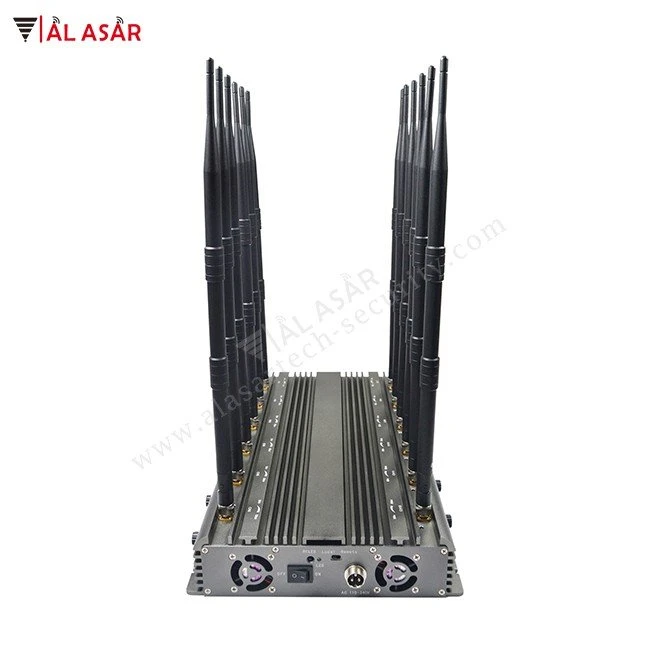

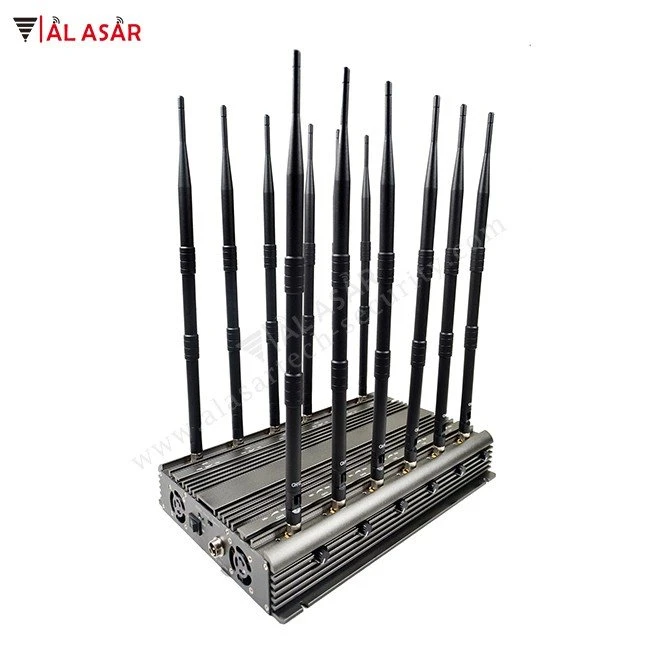

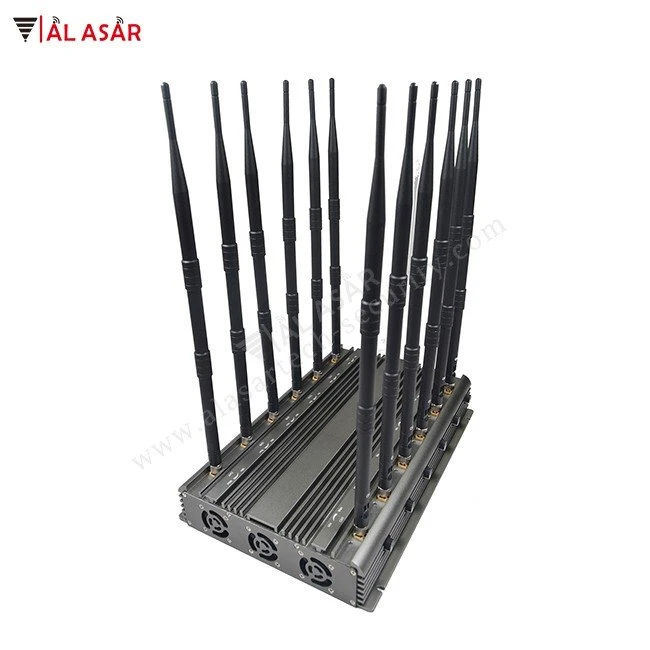

Mobile phone jam This is New powerful cellphone WIFI GPS LOJACK UHF VHF signal jammer with 12 Antennas indoor using adjustable 63W output power jamming up to 60m
Product Feature
12 chancel design, 4-8 watt each band
High output power, Total up to: 70W, jamming up to 60m (Still depends on the strength signal in given area)
External high gain 3-5dbiOmni-directional antennas all the TX frequency covered down link only
Build-in AC110-240V to 24V adapter,Safe and easily use.
Built-in good cooling system inside 5 fans, Working non-stopped
2-5meters with Infrared Remote Control Turn ON /OFF Power
Can adjust or turn off any single band without influencing the other bands operation
Independent module designwith frequency source of each channel, easy maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer)
ODM and OEM orders are welcome, you can select any 12 bands for your require.
Notice:If you want to use this device in car,pls buy an inverter of DC12V/24V toAC110-240V,Power Greater than or equal to 500Watts
OEM Customized Service
Customized for special frequency band , Wi-Fi5.8G 3.6GHz, etc
Silkscreen OEM service can be offered
Product Specificaiton
Jam Signal Type:Full Bands Mobile Phone 4G/3G/2G plus WiFi plus GPS plus LOJACK/UHF/VHF/RC433/315
Output Power:Total 65-71W,4-8W each band
Jam Radius:20-60meters
Power Supply:AC110-240V to DC24V
Cooling System:High efficiency aluminum alloy radiator, Build-in5 cooling fan
Working Time:Not-stop Working
Product Size:355x 238x 60mm（not Include Antenna）
Product Weight: appr.5.0kg

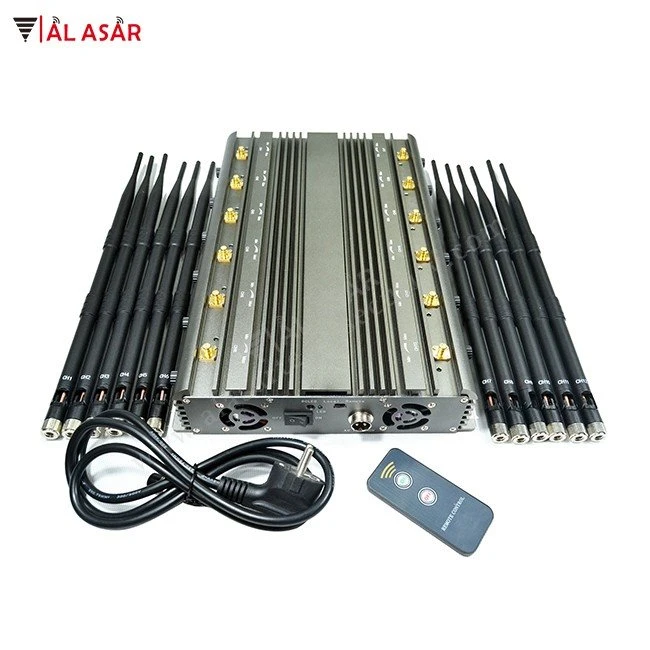

Package Contents:Jammer Host x 1,AC Plug x 1,antenna x12
Color:Grey
Key technical specifications: A | |||
Channel | Output port | Frequency range | Average out-putting power |
1 | CDMA | 851-894MHz | 39dBm/8W |
2 | GSM | 925-960MHz | 39dBm/8W |
3 | DCS or PCS | 1805-1880 or 1920-1990MHz | 37.8dBm/6W |
4 | 3G | 2110-2170MHz | 37.8dBm/6W |
5 | 4G1 LTE | 700-803 or 790-862MHz | 39dBm/8W |
6 | 4G LTE1700 | 1700-1800MHz | 37.8dBm/6W |
7 | 4G Wimax | 2500-2690 or 2300-2400MHz | 37dBm/5W |
8 | WIFI2.4G | 2400-2500MHz | 37dBm/5W |
9 | GPSL1 | 1570-1580MHz | 36dBm/4W |
10 | LOJACK | 167-175MHz | 37dBm/5W |
11 | VHF | 135-174MHz | 37dBm/5W |
12 | UHF | 400-470MHz | 37dBm/5W |
The below frequencies you can instead of above one to combined 12 bands | |||
GPSL2 plus L5 | 1170-1280MHz | 36dBm/4W | |
GPSL3 plus L4 | 1370-1390MHz | 36dBm/4W | |
RC315 | 310-320MHz | 36dBm/4W | |
RC433 | 430-440MHz | 36dBm/4W | |
Power supply: Build-in AC adapter 50 to 60Hz, (AC110-240V IN,DC24V working) | |||
Dimensions: (length ,width, height) 355x 238x 60mm（not Include Antenna） | |||
Packing size: 47x42x11.5cm Net weight: 5kg Gross weight: 5.5kg | |||
Total power:71W | |||
Warranty: one year from delivery date | |||
Key technical specifications: B | |||
Channel | Output port | Frequency range | Average out-putting power |
1 | CDMA | 851-894MHz | 39dBm/8W |
2 | GSM | 925-960MHz | 39dBm/8W |
3 | DCS or PCS | 1805-1880 or 1920-1990MHz | 37.8dBm/6W |
4 | 3G | 2110-2170MHz | 37.8dBm/6W |
5 | 4G1 LTE | 700-803 or 790-862MHz | 39dBm/8W |
6 | 4G LTE1700 | 1700-1800MHz | 37.8dBm/6W |
7 | 4G Wimax | 2500-2690 or 2300-2400MHz | 37dBm/5W |
8 | WIFI2.4G | 2400-2500MHz | 37dBm/5W |
9 | GPSL1 | 1570-1580MHz | 36dBm/4W |
10 | LOJACK | 167-175MHz | 37dBm/5W |
11 | WIFI5.2G | 5100-5500MHz | 31dBm/1.2W |
12 | WIFI5.8G | 5500-5900MHz | 31dBm/1.2W |
Power supply: Build-in AC adapter 50 to 60Hz, (AC110-240V IN,DC24V working) | |||
Dimensions: (length ,width, height) 355x 238x 60mm（not Include Antenna） | |||
Packing size: 47x42x11.5cm Net weight: 5kg Gross weight: 5.5kg | |||
Total power:71W | |||
Warranty: one year from delivery date | |||
Application:
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
